microvia strategy
XFPCB reviews microvia strategy against your submitted files, quantity and application requirements before confirming the build plan.
Advanced PCB

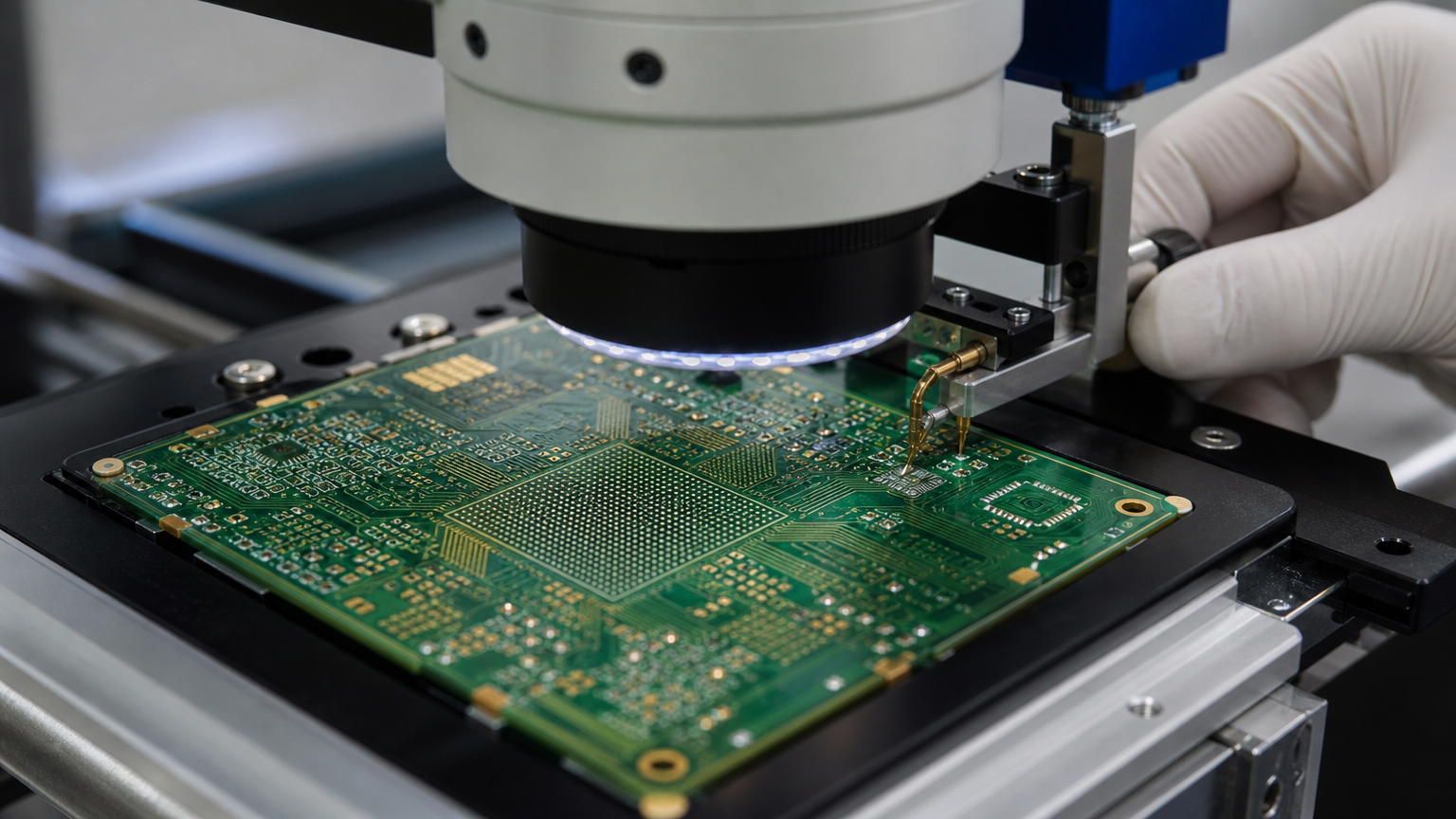

HDI PCB Manufacturing for Dense, Reliable Electronics
XFPCB supports HDI PCB manufacturing for dense routing, microvia structures, compact products, BGA designs and controlled lamination planning.
Technical Requirements for HDI PCB
XFPCB manufactures HDI PCB for designs that need tighter process control than a standard FR-4 board. Our team checks stackup, via structure, material, solderability and inspection requirements so dense, high-speed or high-reliability boards can move into production smoothly.
For advanced boards, send the stackup, impedance targets, BGA pitch, via requirements, material preference and inspection notes. XFPCB will confirm which details affect yield, cost and lead time before production approval.
Send us the files, quantity, material preferences and inspection requirements that matter to your project. XFPCB will confirm what can be manufactured, what affects cost and what needs approval before production.
Engineering Checks
sequential lamination
Clear sequential lamination requirements help our team quote accurately, prepare production data and reduce avoidable clarification rounds.
BGA fanout
Our engineers confirm details for BGA fanout early, so your team can approve the order with clear next steps.
DFM review for dense routing
Production notes for DFM review for dense routing stay connected with the project to support repeat orders and future design revisions.
Production Workflow
- Review complex geometry and material requirements.
- Discuss stackup, via structure, impedance or thermal requirements.
- Confirm inspection method and acceptance expectations.
- Produce with controlled communication around any engineering details.
For HDI PCB, XFPCB combines engineering review, manufacturing preparation, quality inspection and export communication so your purchasing team can move from RFQ to delivery with a clear build plan.
Specification Table
| Project Area | XFPCB Guidance |
|---|---|
| Common structures | 1+N+1, 2+N+2, via-in-pad or buried via designs depending on files |
| Production control point | Over-aggressive density without stackup review |
| XFPCB link | Use HDI with controlled impedance, BGA and PCBA support |
Key Terms
- Microvia
- A small laser-drilled via used in HDI routing.
- Controlled impedance
- A trace structure designed to meet a target impedance.
- Via-in-pad
- A via placed in a component pad, often filled and capped.
- Sequential lamination
- Multiple lamination cycles used for advanced via structures.
Related XFPCB Support
HDI PCB FAQs
What should I send to quote HDI PCB?
Send Gerber files, NC drill files, board outline, stackup notes, material, copper weight, surface finish, quantity and target lead time. For PCBA or assembly-related work, also send the BOM with manufacturer part numbers, pick-and-place data, assembly drawing, DNP notes and test expectations.
Can XFPCB review the files before production?
Yes. XFPCB can review manufacturability and quotation details before production starts. We check material choices, via structures, component package data, tolerance requirements and inspection requirements before release.
Can XFPCB support both prototype and production orders?
In most cases XFPCB can support both stages. Prototype builds help validate the design, while production planning controls repeatability, documentation, component supply and cost for future orders.
How can I reduce quotation delays?
Provide complete files, expected annual or batch quantity, destination country, special standards, inspection needs and the target schedule. If the design is still changing, tell us which details are fixed and which are under review.
Request a Quote for HDI PCB
Send your project information to XFPCB and our team will review the key manufacturing or assembly details. A complete RFQ helps us respond with a more accurate quote and a clearer production plan.
- For bare PCB projects, include Gerber, drill, stackup, material, copper, finish, quantity and lead time.
- For PCBA projects, include BOM, pick-and-place file, assembly drawing, test notes and approved alternatives.
- For application-specific projects, share operating environment, reliability expectations and packaging needs.
